BNW-YILDIRIM

The BNW-YILDIRIM is a next-generation cruise missile. It has been designed to deliver payloads of up to 50kg. Capable of flying at extremely low altitudes, it has been designed to avoid radar detection and is therefore the perfect tool to neutralize detection complexes. It has a modifiable bolt-on configuration, allowing it to be configured to most fixed-wing aircraft hardpoints, without the need for modifications to the vehicle.

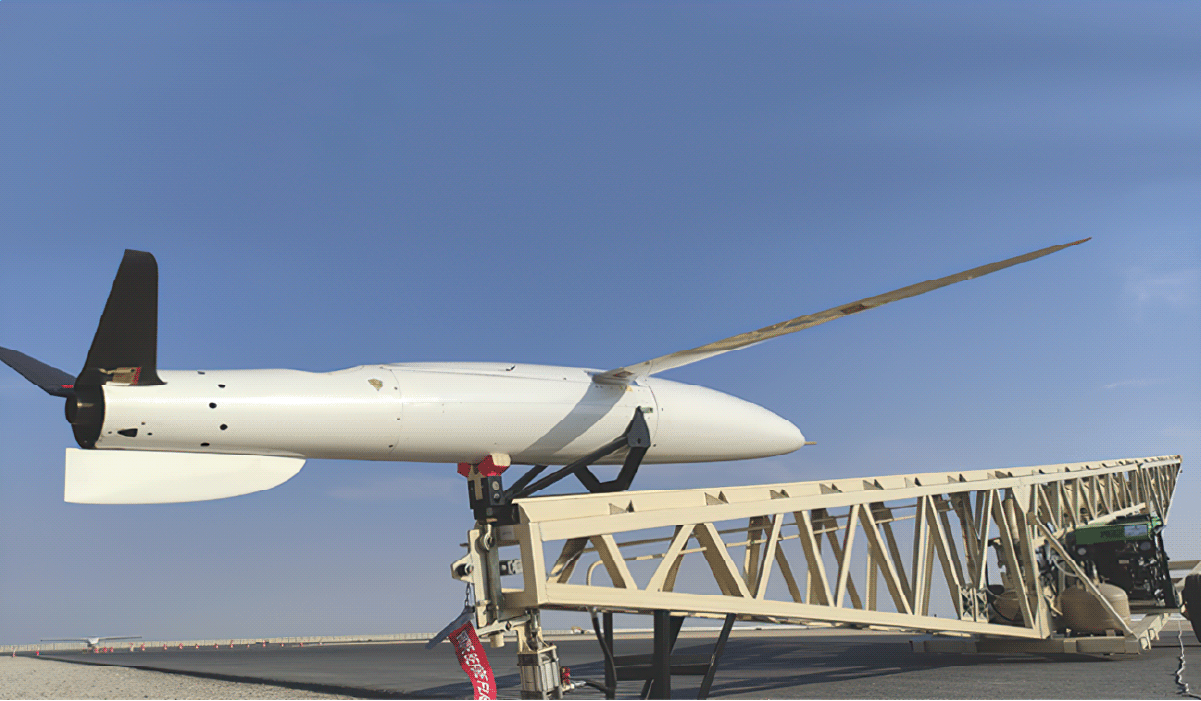

A ramp can be used to launch the missile directly from the ground, allowing it to be easily launched by a mobile unit. This adaptability allows armouries both large and small to implement the armament into their doctrine. A highly advanced system that has been designed to be a versatile tool in any arsenal.

SPECIFICATIONS

Wing span: 3.4 m

Length: 3.3 m

Max. take-off weight: 86 kg

Empty weight: 38 kg

Max. Fuel tanks capacity: 45 L (38 kg)

Max payload: 50 kg

Minimum parachute deployment height: 100 m

Parachute descent speed: 5 m/s

Altimeter: radio

Take-off, in-route mission and landing: Fully automatic

Temperature range: -40…+50

Accuracy: 2 meters in angle and 0.5 meters in azimuth

Speed range: 180-520 km/h

Max. Flight range (speed 250 km/h.): 350 km (with payload 50kg)  / 600 km (with payload 15kg)

Flight time (payload 50 kg): 25 min

Flight time (payload 10 kg): 2 h 20 min

Max Flight time (payload 10 kg): 120 min

Maximum altitude: 8000 m

Engine type:  JET

Max load factor permitted (x 1,8): +6 g – 4 g

Parachute: Two stage system
