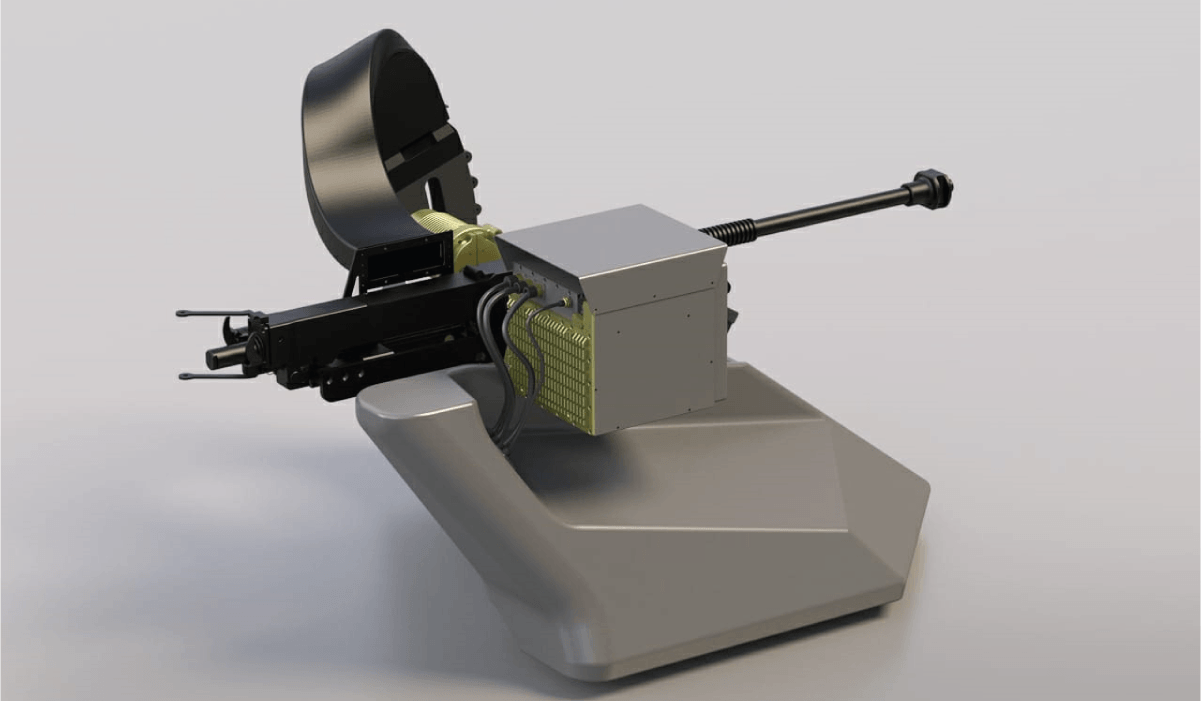

BNW-RCWS-12.7

Combat mobile remotely controlled module BNW-RCWS is intended for the search, detection, and shooting of objects at any time of day (day/night). The BNW-RCWS is able to operate Round the clock by using a thermal imaging (infrared) channel – with a range of at least 2 km In the afternoon and in the twilight with the help of a television channel – with a range of not less than 3 km.

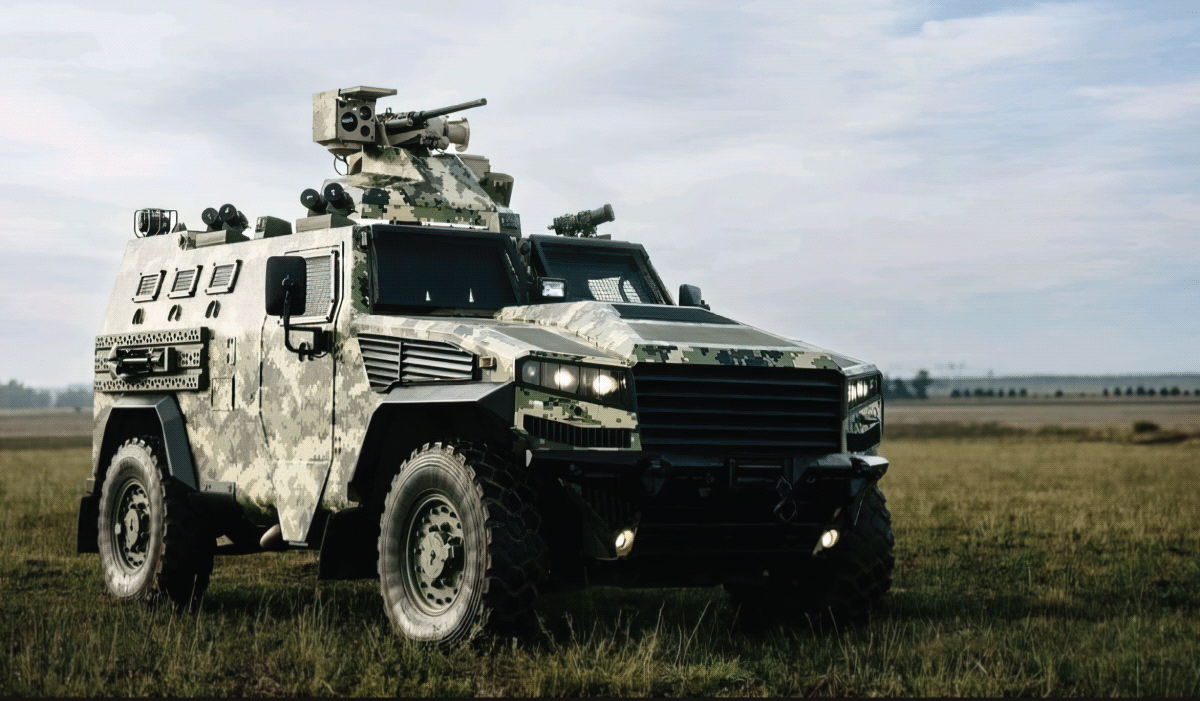

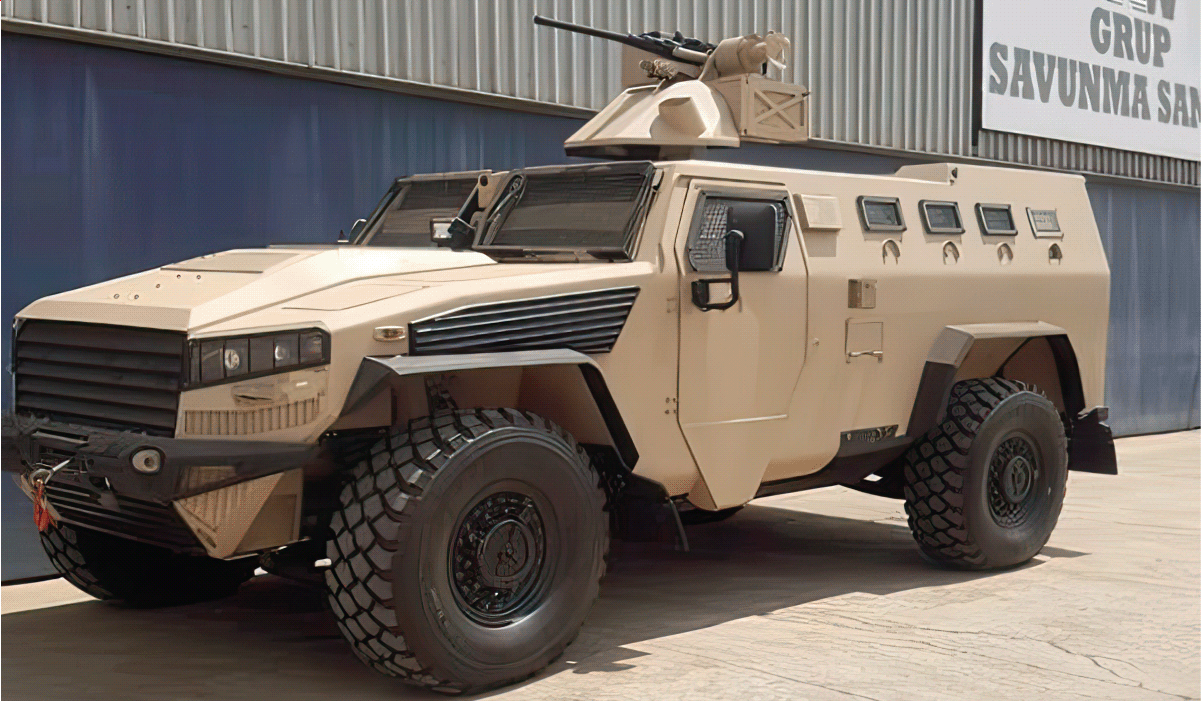

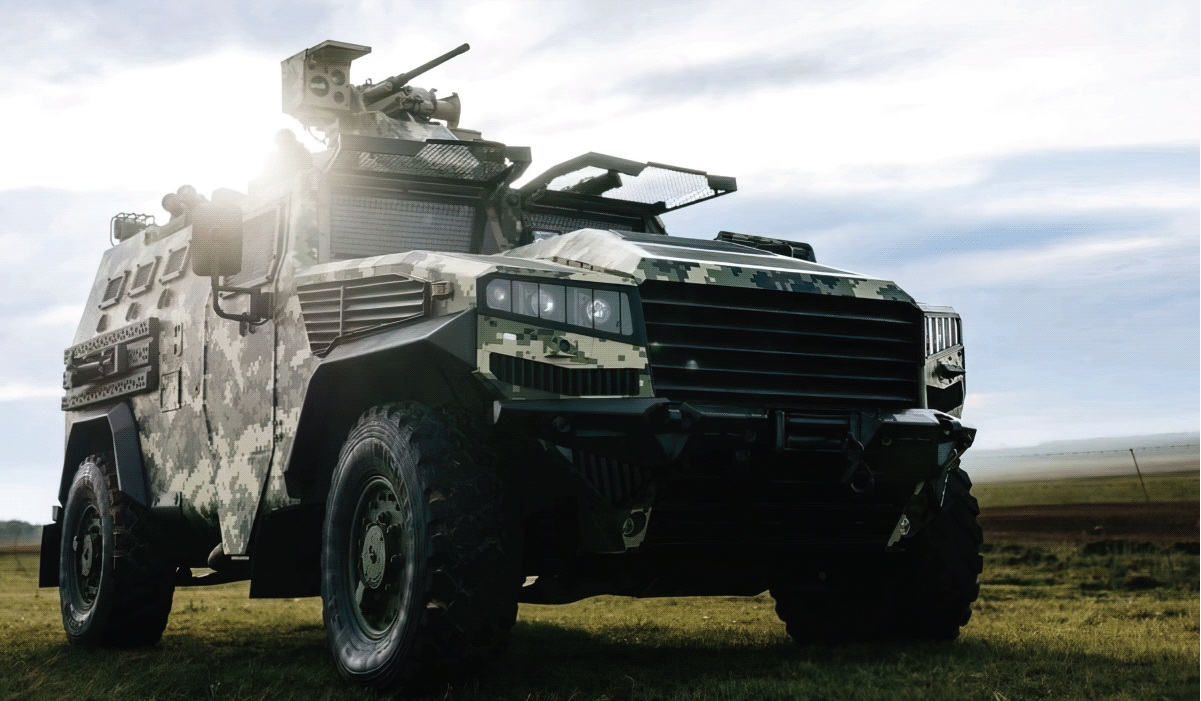

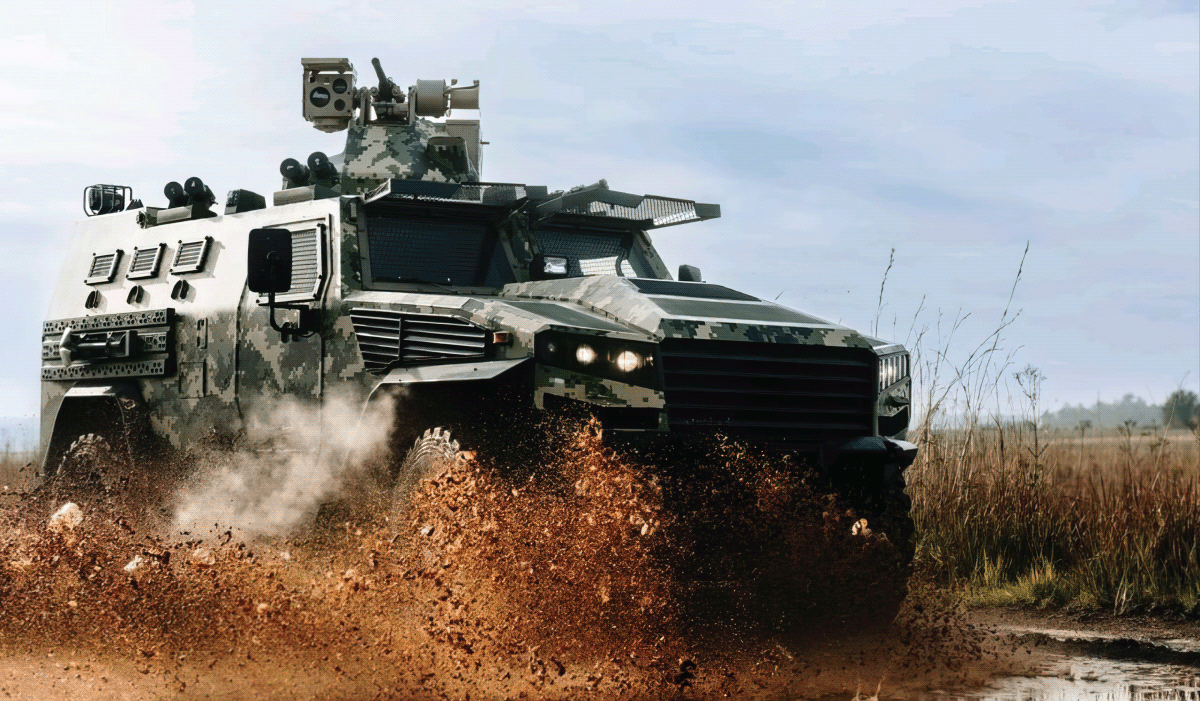

The turret machine gun system is installed on lightly armored vehicles and is designed to engage lightly armored vehicles and air targets (helicopter) at ranges up to 2000 m days and night. It can be Optionally equipped with a laser rangefinder with a wavelength of 905 nm. The combat module is Autonomous, closed, stabilized, remotely controlled from the operator’s seat.

BNW will produce the remote control weapon station BNW-RCWS in two ranges, manual and electronic.

Manual Turret range

Drive options
- Manual only
- Electric with manual back up
- Stabilized with Manual back up
Basic features
- Single weapon system
- Weapons and ammunition Internal
- Weapons serviced within the turret
- Slip ring n x 360°
Weapon options
- 7.62mm – 12.7mm NATO
- 7.62mm – 12.7mm SOVIET
- Larger calibers on request
Sensor capabilities
- Day camera
- Thermal camera
- Laser range finder
- Large vision blocks
- Independent ball sight
- Multi function periscope Including night vision
- External turret / weapon light
Operator capabilities
- Dual hand controller
- Large screen
- Gunner switch panel
- Comprehensive safety system
- Programmable non- fire zone
- Vehicle hatch open sensors
- Manual override of key functions
- Gunner completely protected Under armor

Drive options
- Electrically stabilized
- Electrically non-stabilized
Basic features
- Dual weapon system ( Main and Co-axial)
- Weapons and ammunition External
- Powerful slew And traverse motors
- Slip ring n x 360°
Weapon options
- 12.7mm NATO
- 12.7mm – 14.5mm SOVIET
- Larger calibers on request
- From 7.62mm Co-axial weapon
Sensor capabilities
- Day camera
- Thermal camera
- Laser range finder
- 360° vision blocks
- Independent ball sight
- Multi-function periscope Including night vision
- External turret / weapon light
Operator capabilities
- Dual hand controller
- Large screen
- Gunner switch panel
- Comprehensive safety system
- Programmable non-fire zone
- Vehicle hatch open sensors
- Manual override of key functions
- Gunner completely protected Under armor

Optoelectronic station (1 unit)
- Day camera (wide-angle lens)
- Day camera (long-focus lens)
- Night camera (wide-angle lens) laser rangefinder
- Computer video processing (video image stabilization system)
- Special software
- Connection cable Front : CEN: BR-7 (motorized, armored front cover with a viewing slot), – Side armor. CEN: BR-6.
Operator Console (1 unit)
- Getac A140 – fully rugged tablet – Industrial joystick
- OS Linux
- Special software
- Connection cable

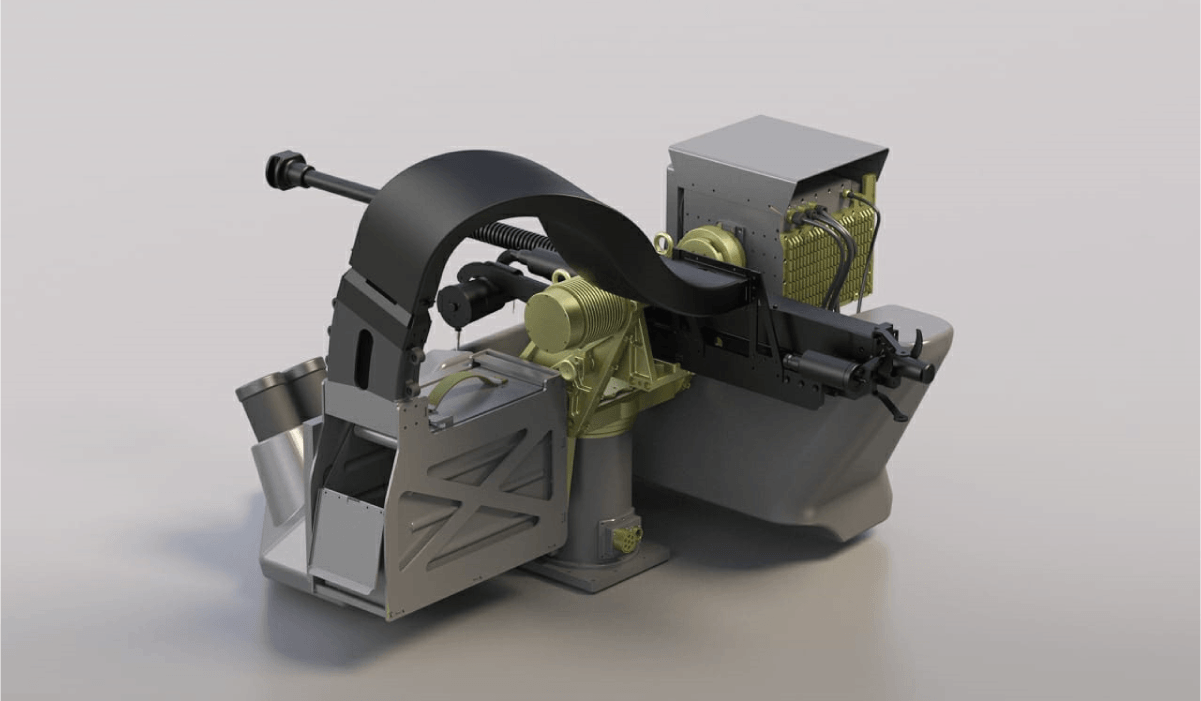

Turret (1 unit)
- Two-axis drive system (azimuth, pitch – BLDC motor / gearbox) – Mounting bracket for weapons (including shock absorber)
- Ammunition box (100 rounds 12,7×108 mm) X 2 units
- Flexible ammunition delivery hose
- Gun recharger actuator
- Connector for electronic shutter release, gun recharger actuator and smoke grenade
- Connector for optoelectronic station
- Connector for Operator console
- Front armor of electric drives: CEN: BR-7 and ammo box. CEN: BR-6
- Smoke grenade mount
- Transportation stops
- I Lifting EYE Bolts 2 units
- Shipping cover
main requirements
- Weight up to 250 kg
- 22-30 Volt DC Power Supply
- International Protection Rating: IP-66
- Azimuth rotation: 360° + (rotation are not limited)
- Pitch rotation: -20° – +60°
- Guidance actuators: Electromechanical, without manual duplication
- Aiming of the armament in the vertical and horizontal planes of 0.1- 15 degree/s
- Transfer speed in vertical and horizontal planes: not less than 60 degrees
- Designed for installation of heavy machine gun NSVT 12.7x108mm (with electric trigger) – Fire single shots or bursts
- Provides the ability to install smoke grenades
- Accuracy: 1.5 Mrad (0,08°)

Range of working angle
- Azimuth: ± 180°
- Elevation angle: from -10° to + 45°
Max guidance rate
- Azimuth: 30°/c
- Elevation angle: 30°/c
Max guidance acceleration
- Azimuth: 30°/c2
- Elevation angle: 30°/c2
Accuracy
- Azimuth: ± 6´(0,1°)
- Elevation angle: ± 6´(0,1°)
Connection interface: CAN, Ethernet
Power supply voltage: 24V
Product weight, no more than: CAN, Ethernet
Connection interface: 240 kg
Payload weight, no more than: 40 kg
Working temperature:from 0°C to + 50°C

day camera (wide angle lens)
- The angle of view of the color television camera in the wide field of view is not less than 11°±10% horizontally and 8.2 ° ±10% vertically
- Camera resolution: 1280 x 720
- Frame rate at full resolution, not less: 25fps
- Lens focal length: 50mm
- The detection range of a tank-type target by a colour television camera in a wide field of view is at least 2,500 m (side view)
day camera (long focus lens)
- The angle of view of a color television camera in a narrow field of view is not less than 2.7 ° ±10% horizontally and 2 ° ±10% vertically
- Camera resolution: 1280 x 720
- Frame rate at full resolution, not less: 25fps
- Lens focal length: 200mm
- The detection range of a tank-type target by a colour television camera in a narrow field of view is at least 5,000 m (side view)
night camera (wide angle lens)
- Horizontal angle of view of thermal imaging camera: 6.2 ° ±10%
- Vertical angle of view of the thermal imaging camera: 4.7 ° ±10%
- Focal Length: 100 mm
- Camera resolution: 640 x 480
- Frame frequency: 25fps
- Target detection range of the tank type, with the thermal contrast of the object relative to the background of at least 2°C, thermal imaging camera is not less than 6500 m (side view)
- Target recognition range of the tank type, with thermal contrast of the object relative to the background of at least 2°C, thermal imaging camera is not less than 2200 m (side view)
- Spectral working range t camera: 8…14 μm
laser range finder
- Measurement Range: 50…4 000 m
- Typical measurement range Man Size Target (0.75 m x 0.75 m, Albedo 30 %, 10 km Visibility) ≥ 2.000 m
