BNW-8X8

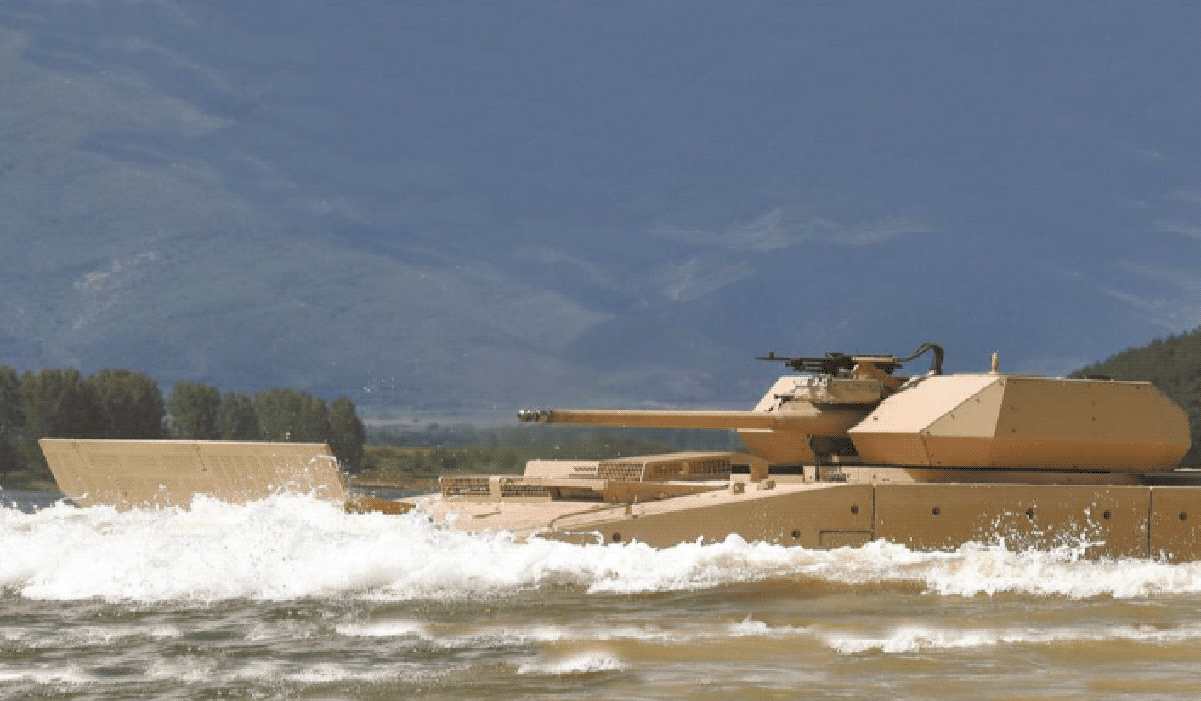

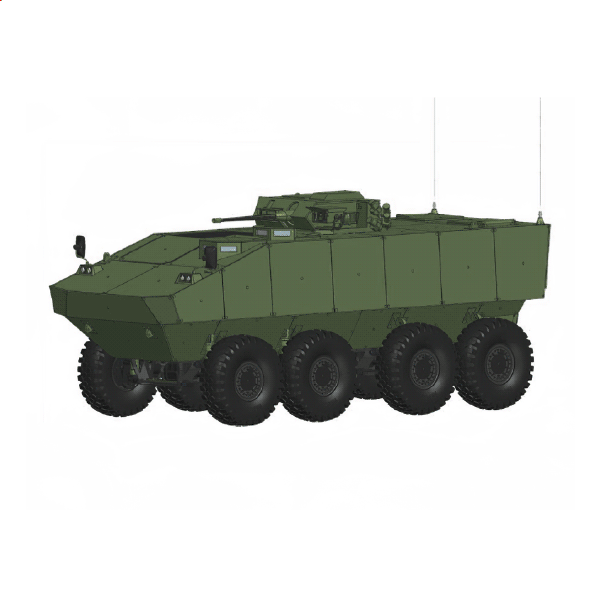

The BNW-8X8  was designed as a versatile personnel carrier, capable of protecting passengers as well as engaging in combat with its remote-controlled 30mm cannon. It is capable and has been fitted with a powerful engine and amphibious capabilities, allowing it to overcome all terrain types.  The BNW-8X8 is an adaptable high-tech solution for both high-volume transportation as well as providing an amphibious platform for powerful weapons systems and detection equipment.

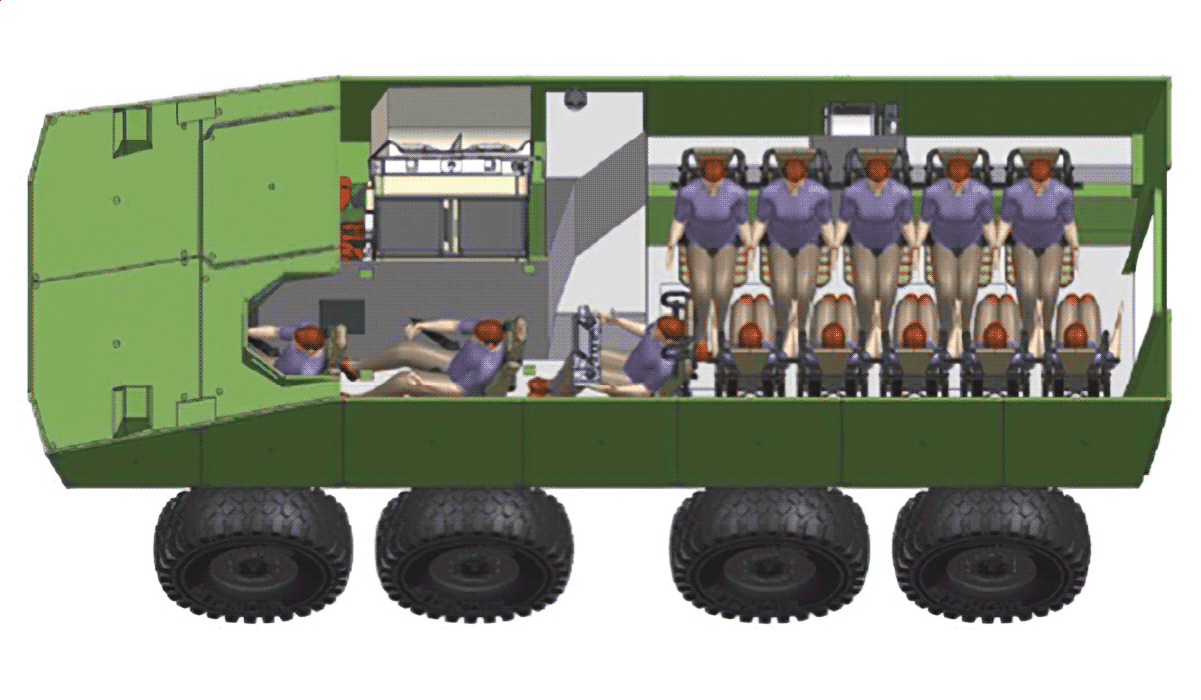

The BNW-6X6 has the capacity to transport 3 crew members as well as 10 passangers across land and water. With level IV of the STANAG 4569 mine protection standard as well as a filtration system that protects from nuclear, chemical and biological threats, the BNW 8X8 offers high levels of protection from all attack types.  High-tech detection and camera systems have been integrated into the vehicle, allowing both daytime and night-time 360 awareness of its surroundings.

PERFORMANCE

Max Speed on ground: 105 km/h

Max Speed in water: 8 km/h

Range:  (80km/h) 700 km

Acceleration: 0-60 km/h 18 sec

Power to weight ratio: 15 kW/ton

ENGINE:  Cummins ILS8.9 540 hp

Max power: 402 kW @ 2200 rpm

Max torque: 1900 Nm @ 1400 rpm

TRANSMISSION: Allison 4000SP automatic

Gears: 6 fwd, 1 rev

WHEELS

Rims: 20 x 10” aluminum

Tires: Michelin 16.00 R20

Inserts: Tyron RFI

Tire inflation: CTIS standard

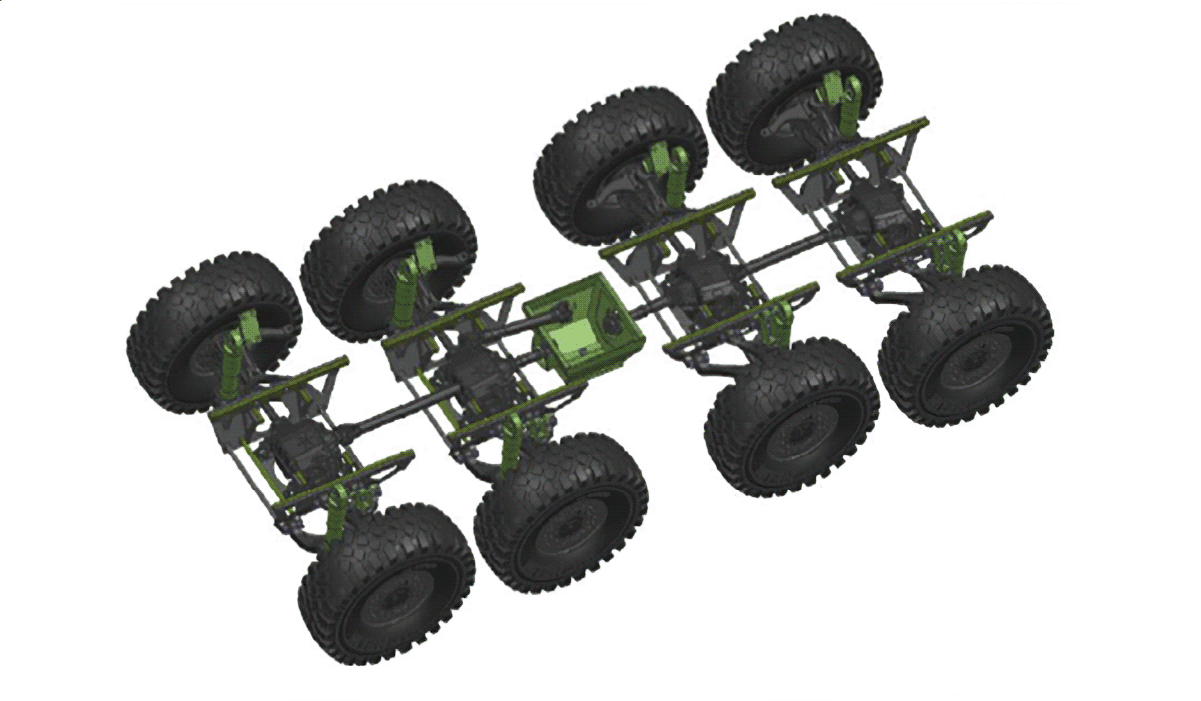

DRIVE TRAIN

Transfer Case / T-case ratios: Timoney / 1.09:1 / 1.96:1

Axles: independent suspension Timoney T900

Diff locks / Suspension: t-case, all axles / hydro-pneumatics struts

Steering: axle 1 and 2 steering with hydraulic assist

Brakes: pneumatic dual circuit all around with disc brakes and ABS, spring applied park brake

ELECTRICAL

Type / Alternator: 24 V / 260 A EMI shielded

Multi-function display / Lighting: Standard / Full LED type

Black-out lights / Work lights: Standard

Camera system: Standard, front & rear

Dual battery system: standard

Harnesses & connectors / EMI / EMC: military type / MIL-STD-461 compliant

AC / Heating: 14 kW Webasto / 5.5 kW diesel heater

CBRN: optional
